HTHP SUS 316L Low Consumption Overflow Fabric Dyeing Machine

Introduction

AS-A series is a groundbreaking U-flow dyeing machine designed to transform textile processing with its ultra-low liquor ratio of 1:5-1:6. By integrating an innovative dye circulation system and intelligent fabric handling technology, it achieves exceptional dyeing uniformity while significantly reducing resource consumption. This advanced system cuts additive usage by over 60% and reduces dyestuff requirements by 5%-10% through precise chemical dosing controls. Environmental performance is equally remarkable, with a 60% reduction in wastewater discharge and substantial decreases in water, energy, and steam consumption compared to conventional dyeing systems.

Technical Parameters

-Maximum fabric speed: 350m/min

-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃

-Heating rate: 25℃-100℃ about 5℃/min

100℃-130℃ about 2.5℃/min

(dry saturated steam pressure at 0.7Mpa)

-Cooling rate: 130-100℃ about 3℃/min

100℃-85℃average2℃/min

(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:6

Model and Specifications

hthp overflow dyeing machine

low consumption overflow dyeing machine

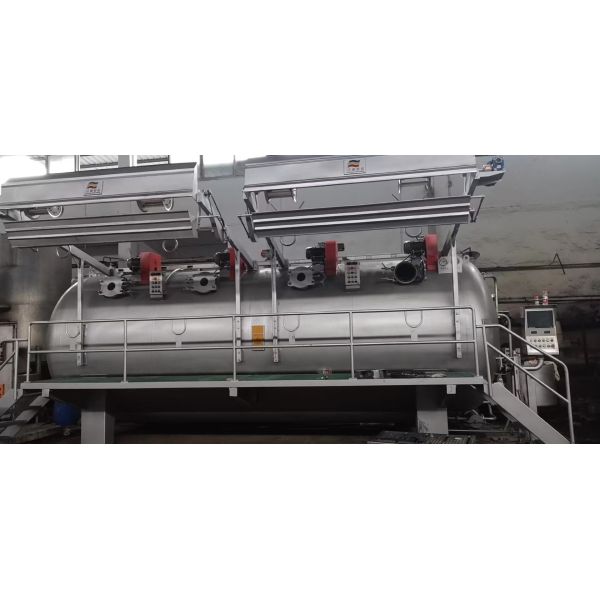

HTHP SUS 316L Low Consumption Overflow Fabric Dyeing Machine Images
